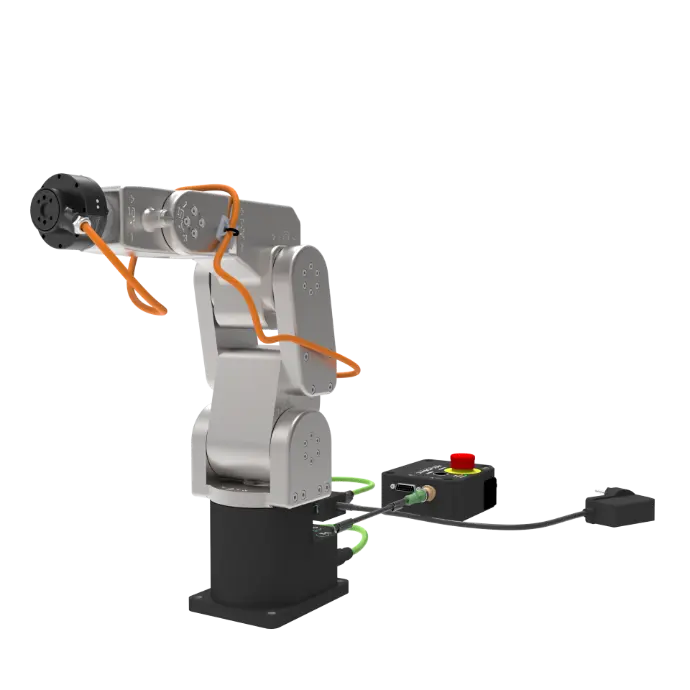

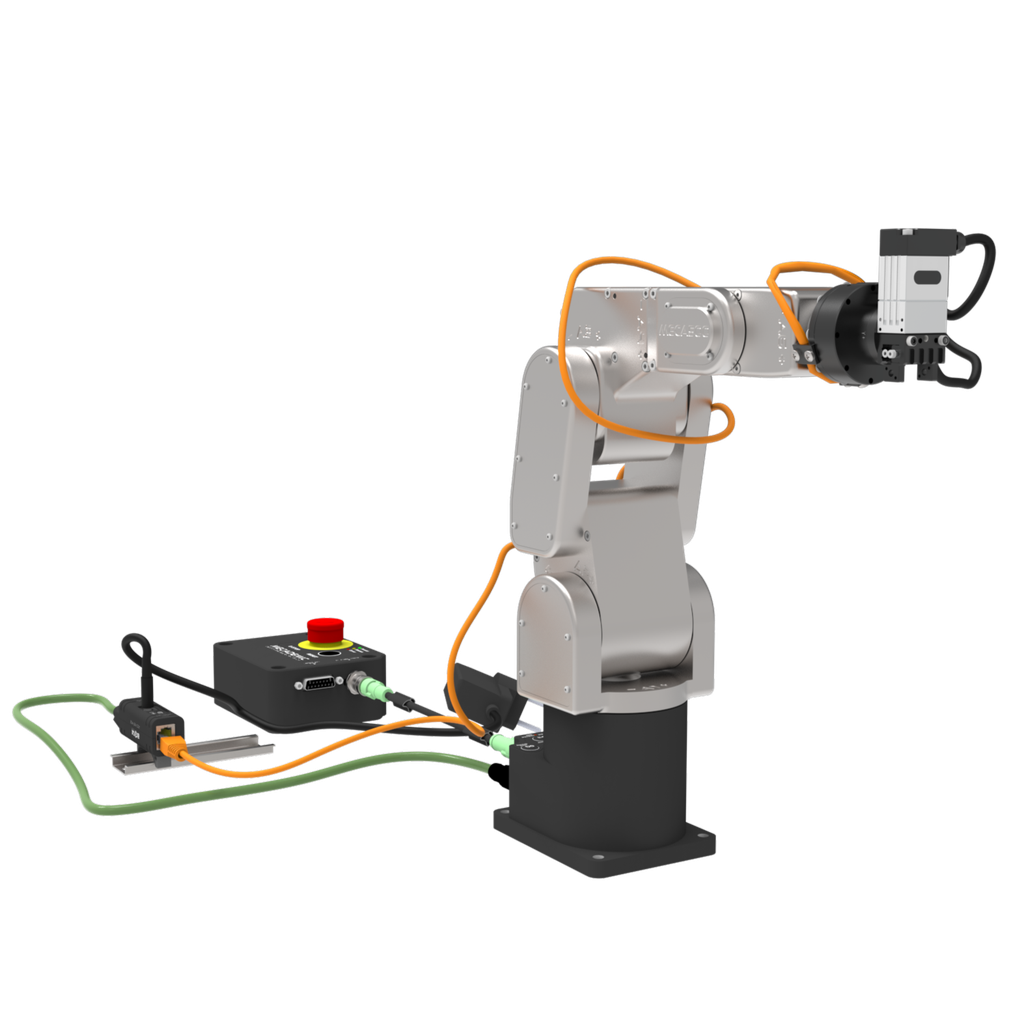

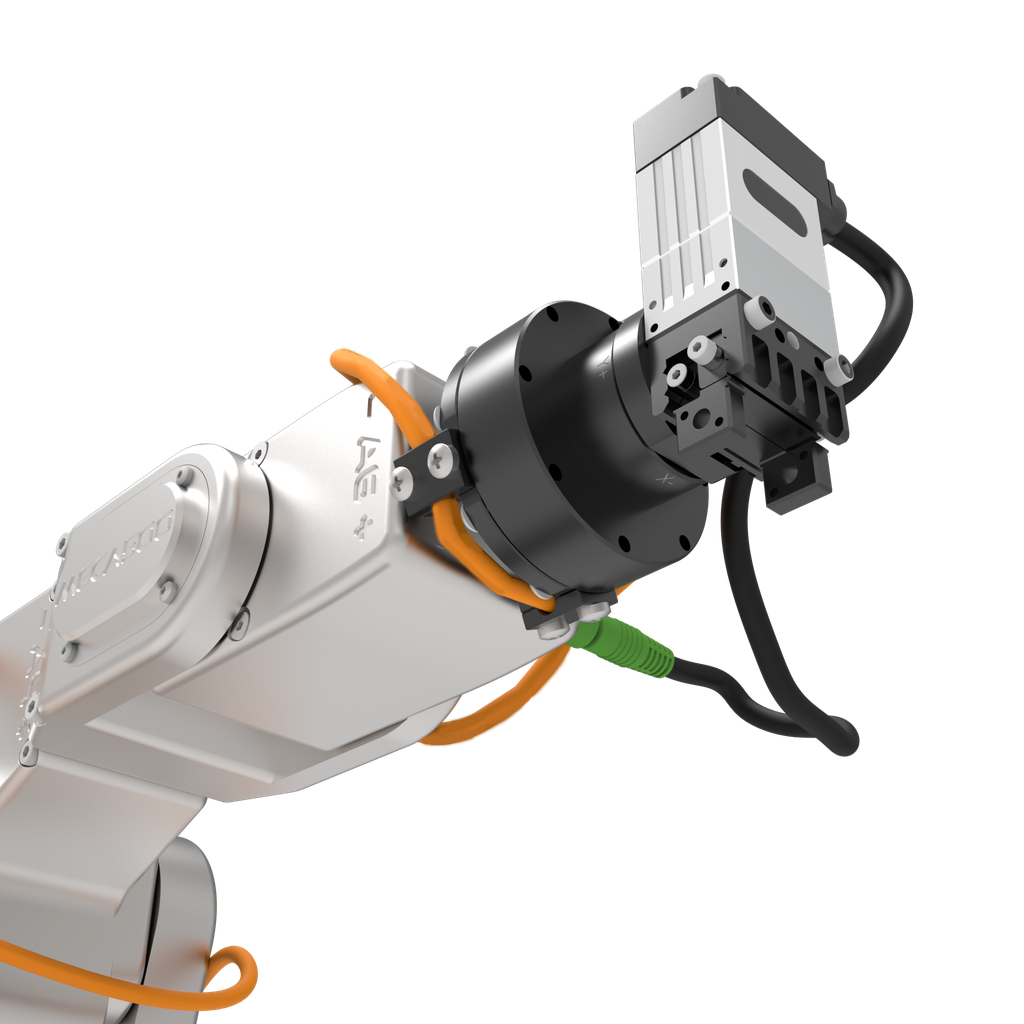

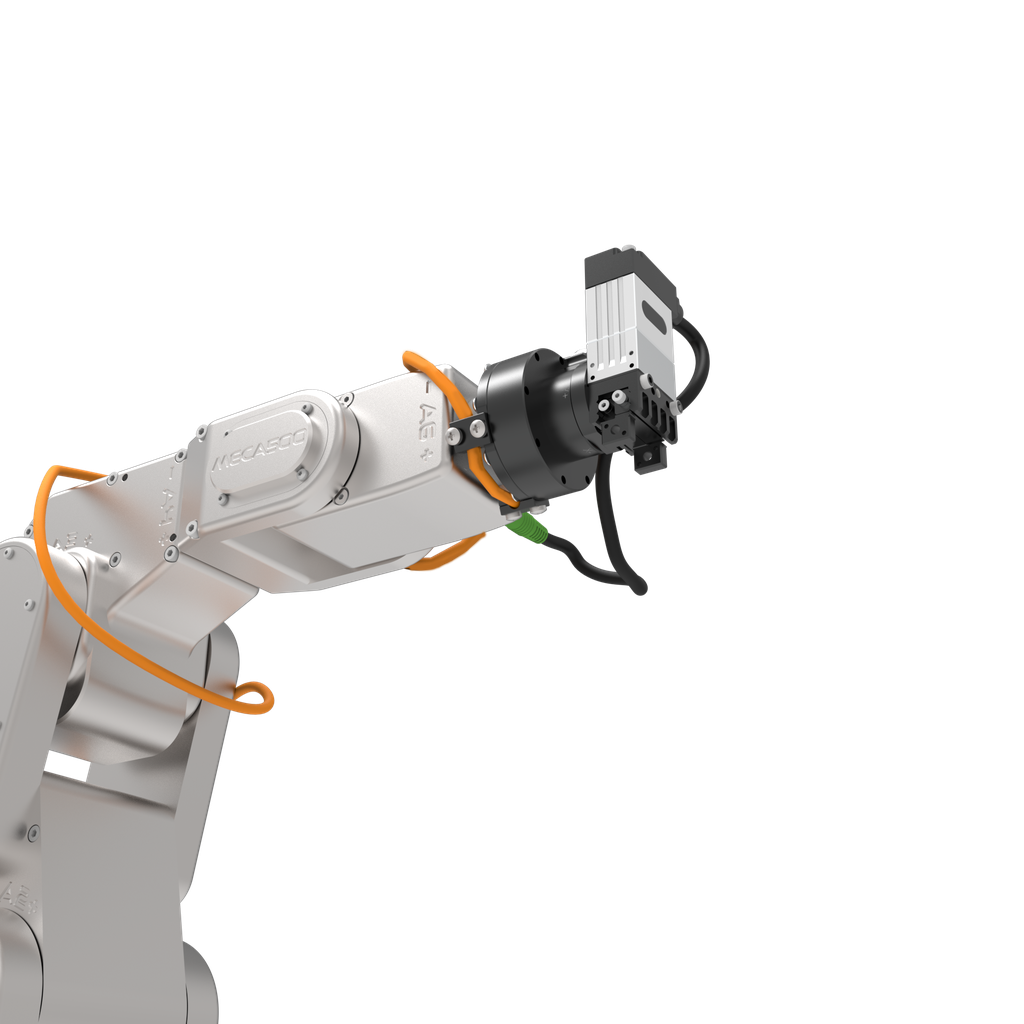

Mecademic Meca500 MiniONE Pro Gen A Kit
Integration kit for Mecademic Meca500 robots with our MiniONE Pro Gen A 6-axis force torque sensor. Includes mechanical and electrical adapters, EtherCAT or Ethernet communication, and all components for fast deployment.
| Range Fxy, Fz, Mxy, Mz: 50N, 50N, 1Nm, 1Nm |
| Tool-side flange: ISO 9409-1-15.5-4-M3 |
| Weight: 60 grams |
Documents
All you need to get started

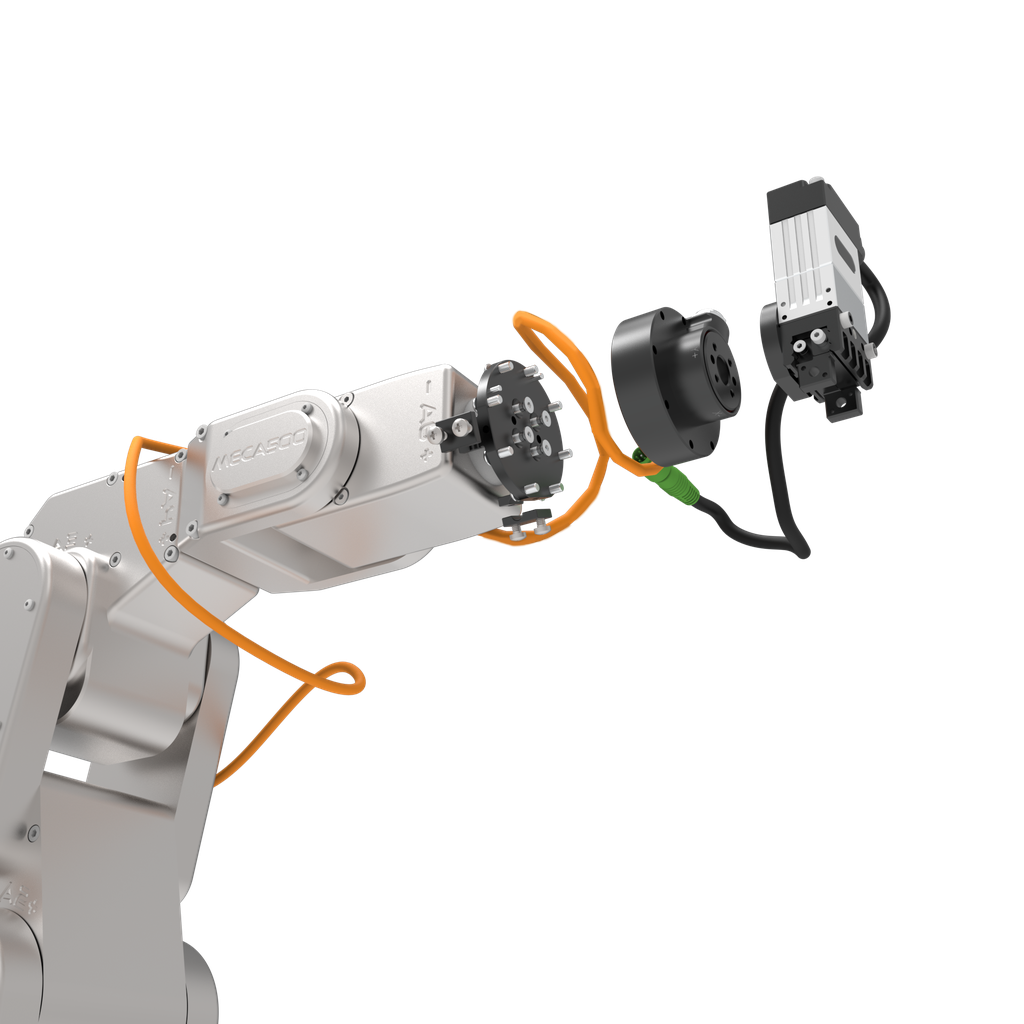

▶ Mechanical adapters, to mount the sensor to the end-effector and the gripper to the sensor
▶ Wiring & cables, to connect and power the sensor to the robot.
▶ Software, with example applications and integration to the robot
A variety of connection options
▶ PoE Ethernet connect the sensor to your existing Ethernet infrastructure, power the sensor through PoE and configure it from the browser.

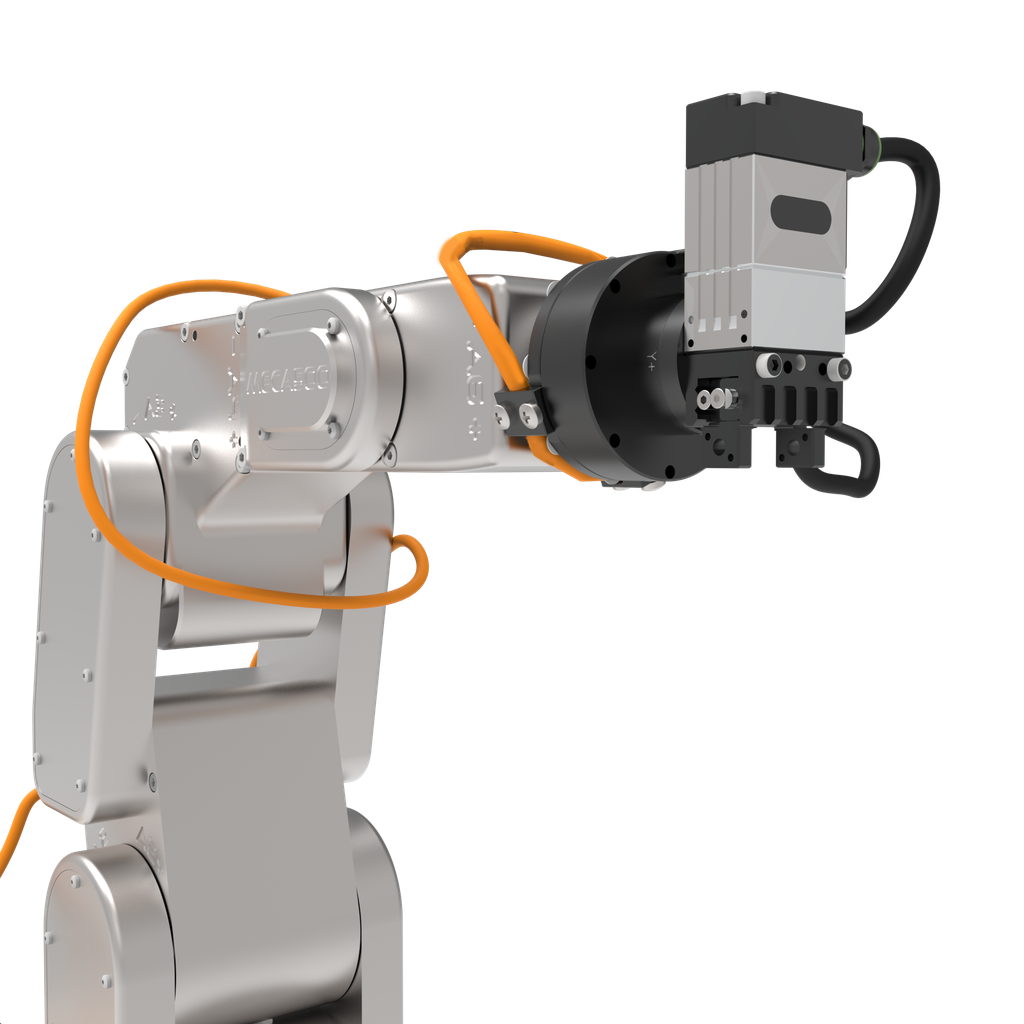

▶ EtherCAT, connect the sensor to the robot's EtherCAT chain and control everything from a single EtherCAT master
Performance
▶ Increase your robot's accuracy, with our contact detection algorithms to 1 micro meter
▶ Detect ultra low forces, up to 1 gram or 0.035 ounces
▶ Low latency, react instantly to contact to protect sensitive and fragile equipment
A new era of applications
▶ Hand Guidance for easy teaching of positions
▶ Force tracking, for contour following, deflashing, polishing.

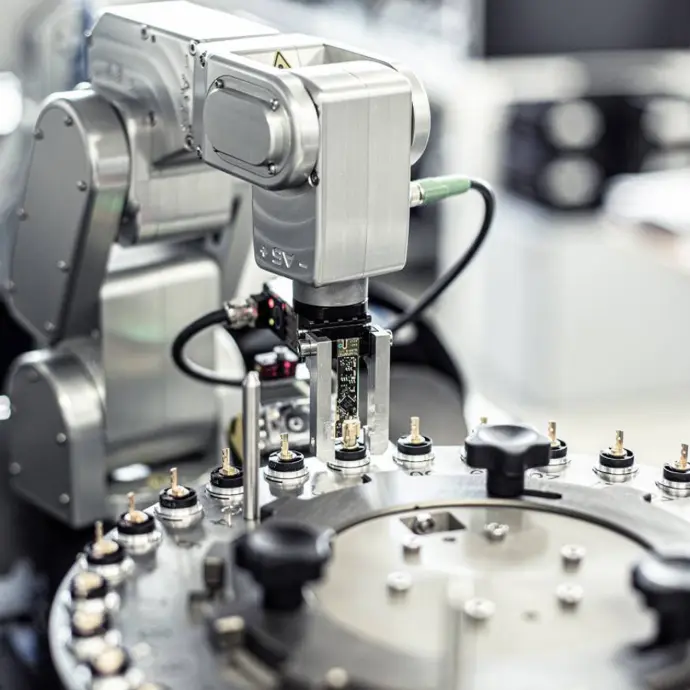

▶ Contact Detection, for part alignment, Pick and weight, Button testing, face matching.
