Connector Variants

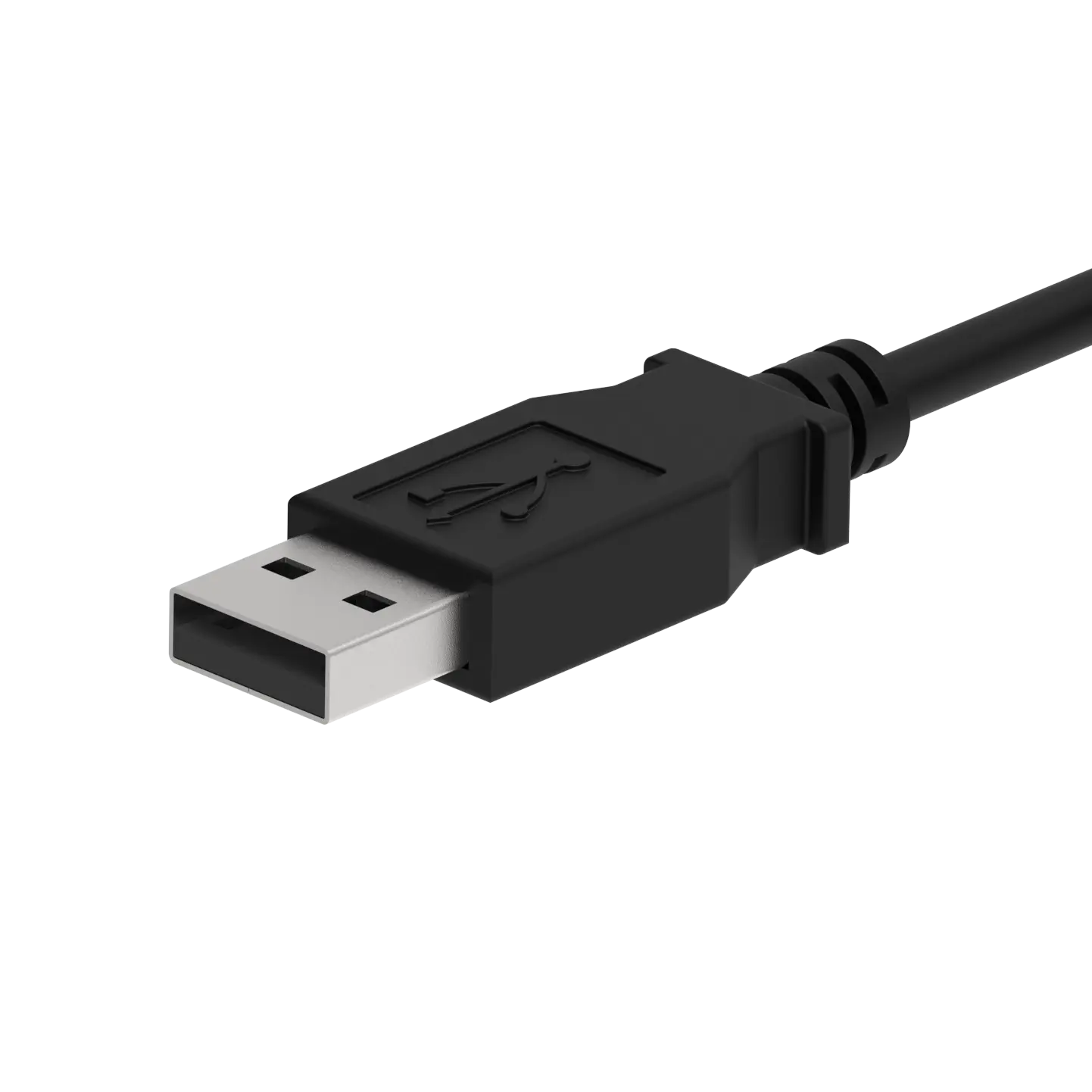

▶ USB A Connector, easy & fast setup for instant measurements

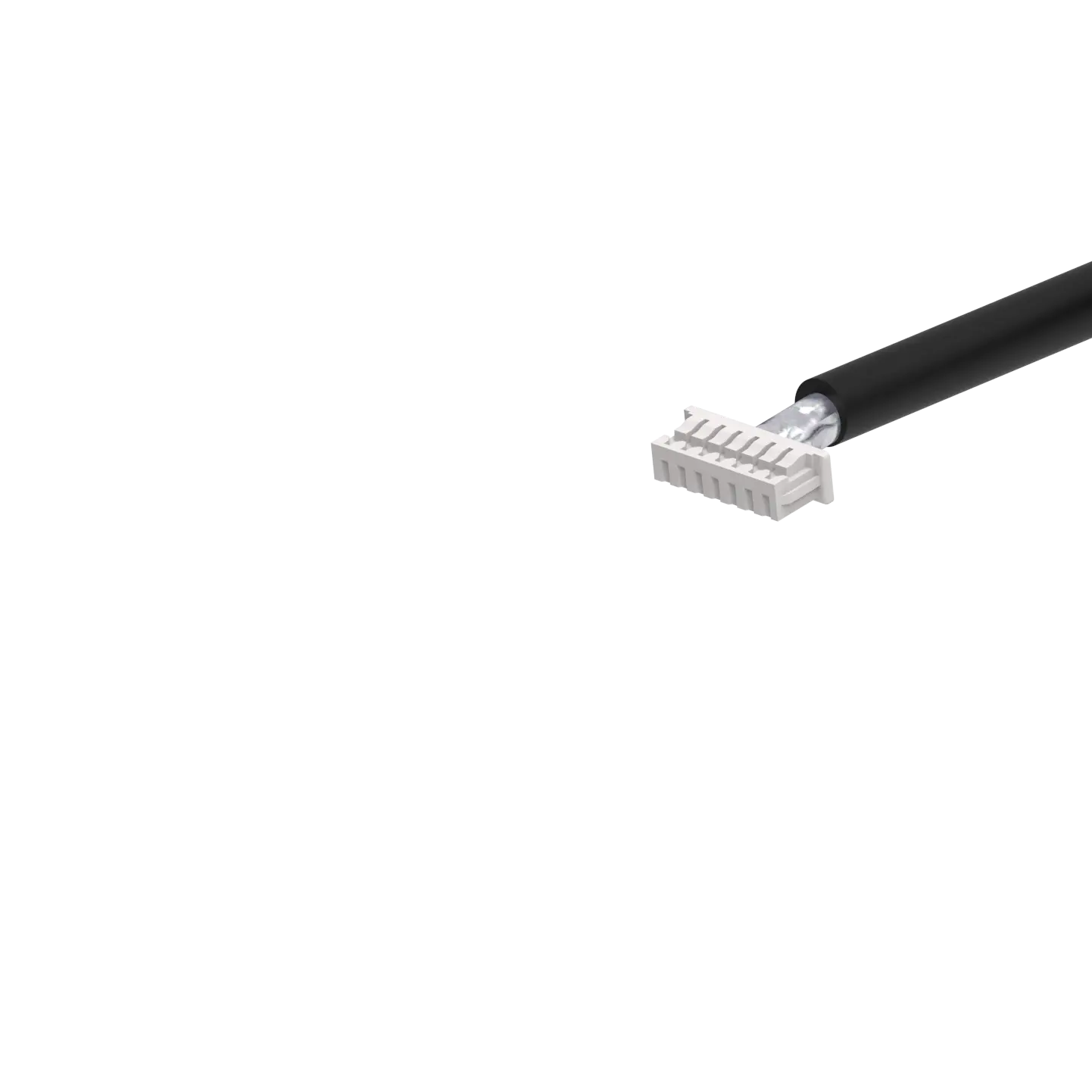

▶ Low profile 6P connector, exposes USB and 3V3 Uart for higher integration level with the robotic systems. RS422/485/232 is also supported with the provided adapter
USB and All serial protocols in UART variant

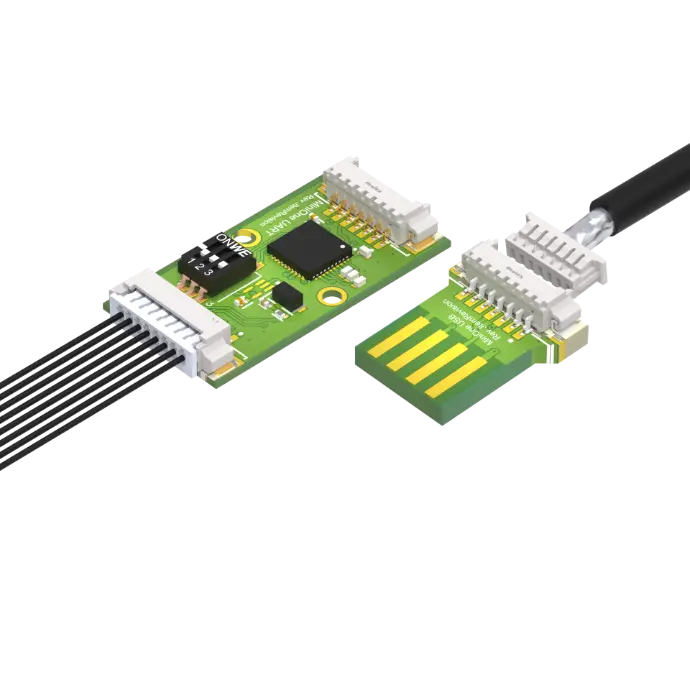

▶ USB Adapter, for fast and easy connection to USB supported device
▶ RS422/485/232 Adapter, for implementing Modbus RTU and connecting to embedded devices
▶ No Adapter for direct connection to your custom designed systems using the Molex receptacle.
Performance
▶ 800Hz sampling rate, supported in all protocols
▶ Low drift, stability over time in all 6-axes with our patented design
▶ Low latency, with native protocol implementation ensuring up to 1 sample latency
Water & Dust resistant
▶ Up to 1m, submersible for 30 mins
▶ waterjets, protection from from every angle
▶ Fine dust, protection
FT Stack SDK
▶ C++, Python, ROS Drivers, optimized and ready to use.
▶ Windows, Linux and embedded architectures support.
▶ Taring, gravity compensation and more functions available.
▶ Sensor configuration, by the drivers.
Initial setup in no time
▶ Robot Integration kits, offering mechanical adapters, cabling and software for the robot controller
▶ Online config for easy and intuitive setup. Skip reading the user manual
▶ Guides & Tutorials to guide you through the integration
▶ USB connection for configuration and measurements with our online config tool.
