Ethernet & EtherCAT cable adapter for Gen A Sensors
Ethernet & EtherCAT cable adapter for Gen A Sensors

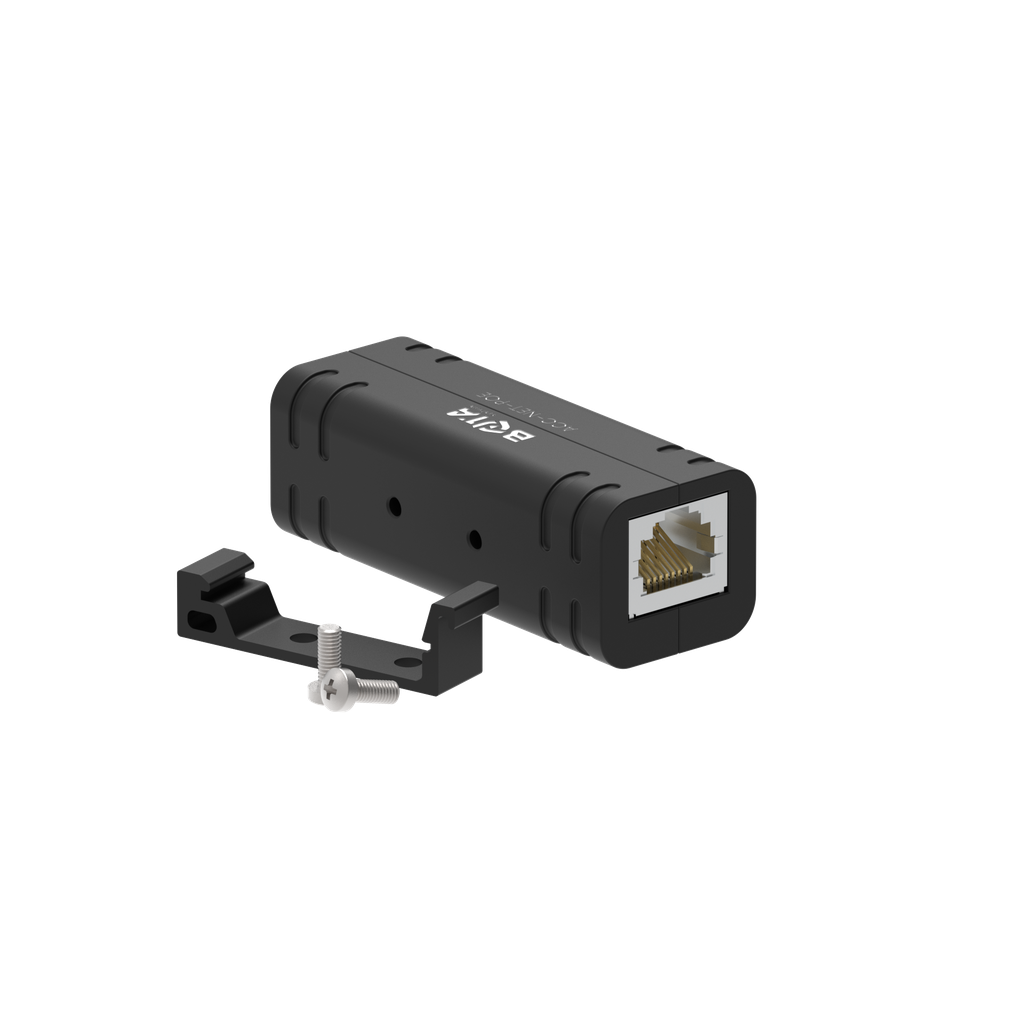

Ethernet & EtherCAT cable adapter for Gen A Sensors BOM
Ethernet & EtherCAT adapter for Gen A Sensors din rail

Ethernet & EtherCAT cable adapter for Gen A Sensors

https://shop.botasys.com/web/image/product.template/2214/image_1920?unique=0936d02

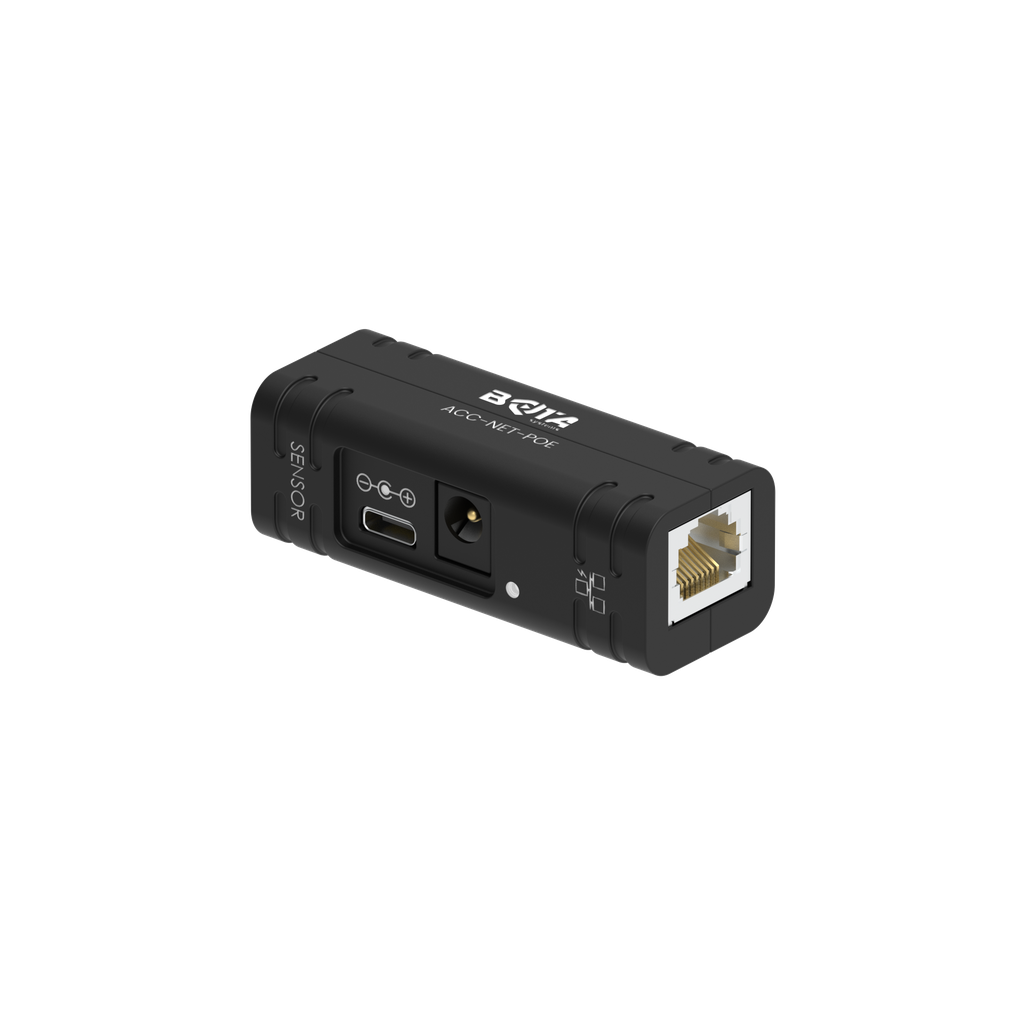

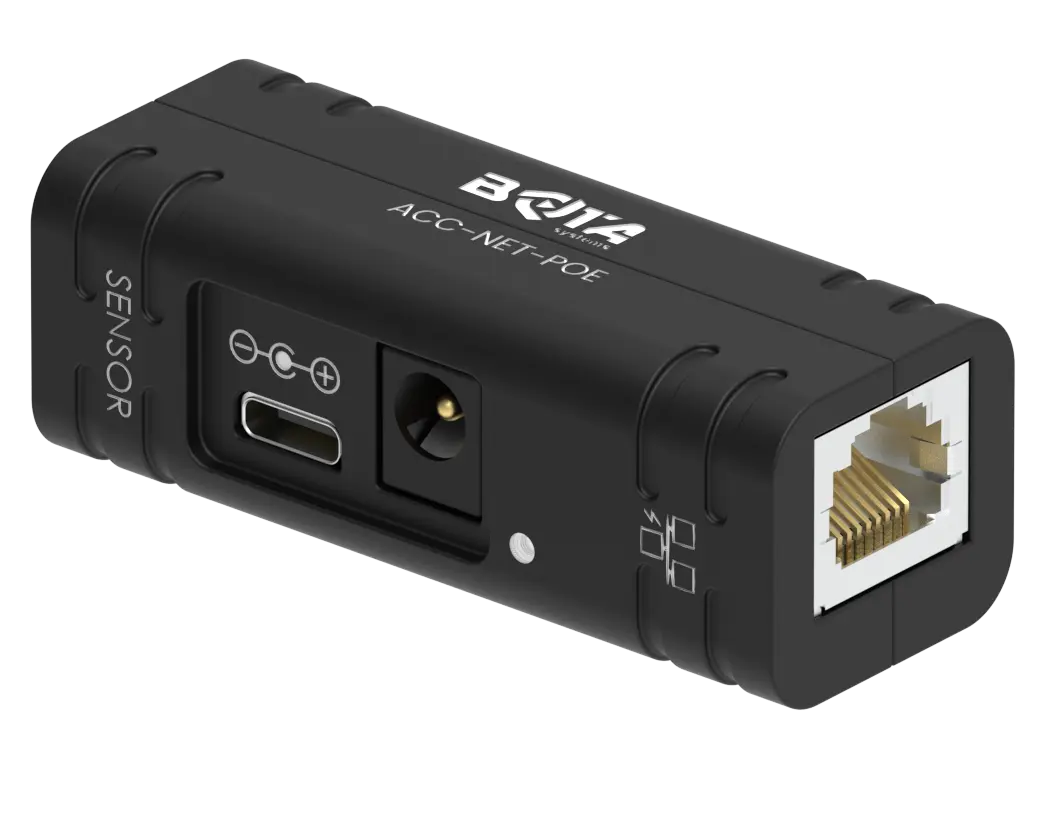

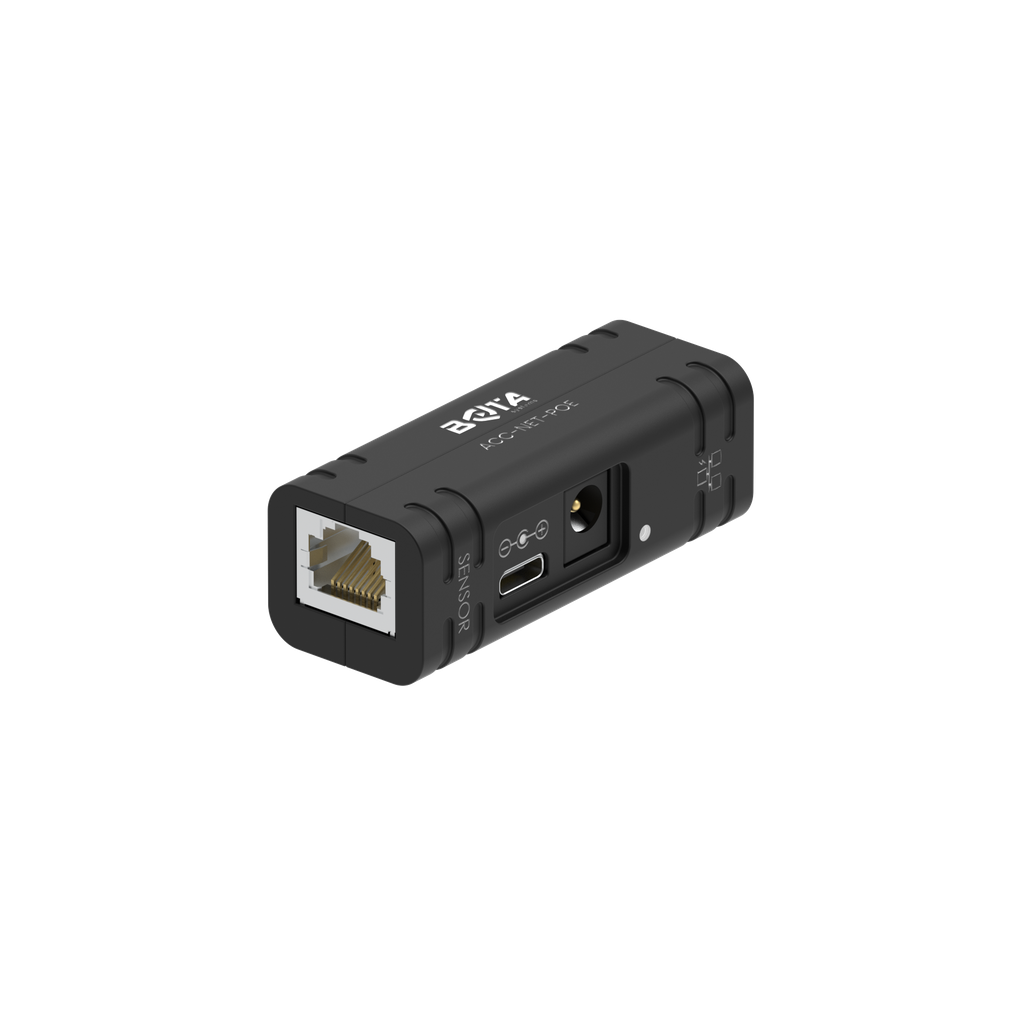

Cable adapter for all Ethernet or EtherCAT Gen A Sensors. It provides power through USB, POE or external power supply. With an RJ45 connector for Ethernet/EtherCAT and USB connection for fast and easy configuration.

Not available online

This combination does not exist.

Get a Quote
Log in to see pricing and buy online or request a quote.

Terms and Conditions
Pricing scales with quantity, for lower price request a quote.
Shipping: 1-2 weeks for 1 unit
Manufactured in Switzerland.

Redundant power supply

▶ Power the sensor over USB

▶ Power the sensor with PoE (IEEE 802.3af, 802.3at, 802.3bt)

▶ Power the sensor from an external power supply with a DC jack.

Various mounting options

▶  A screw pattern for direct mounting

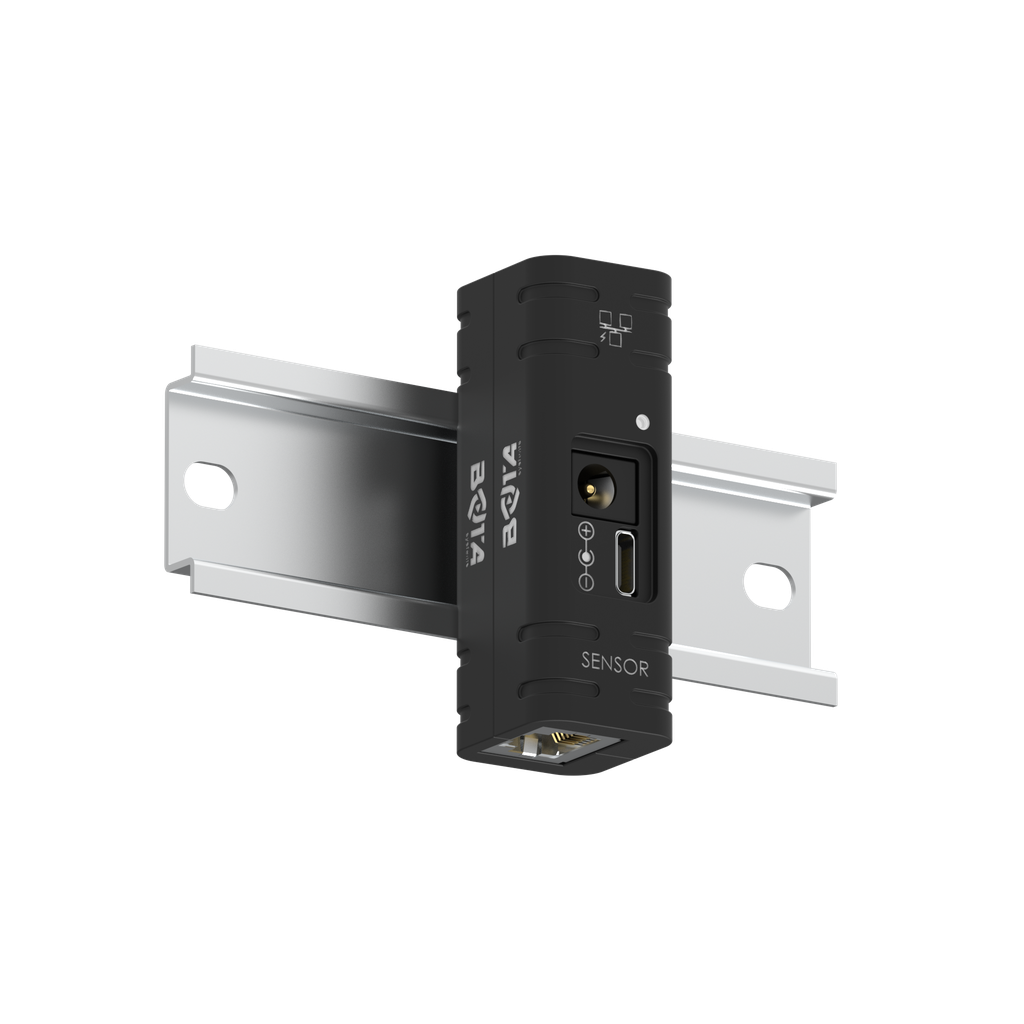

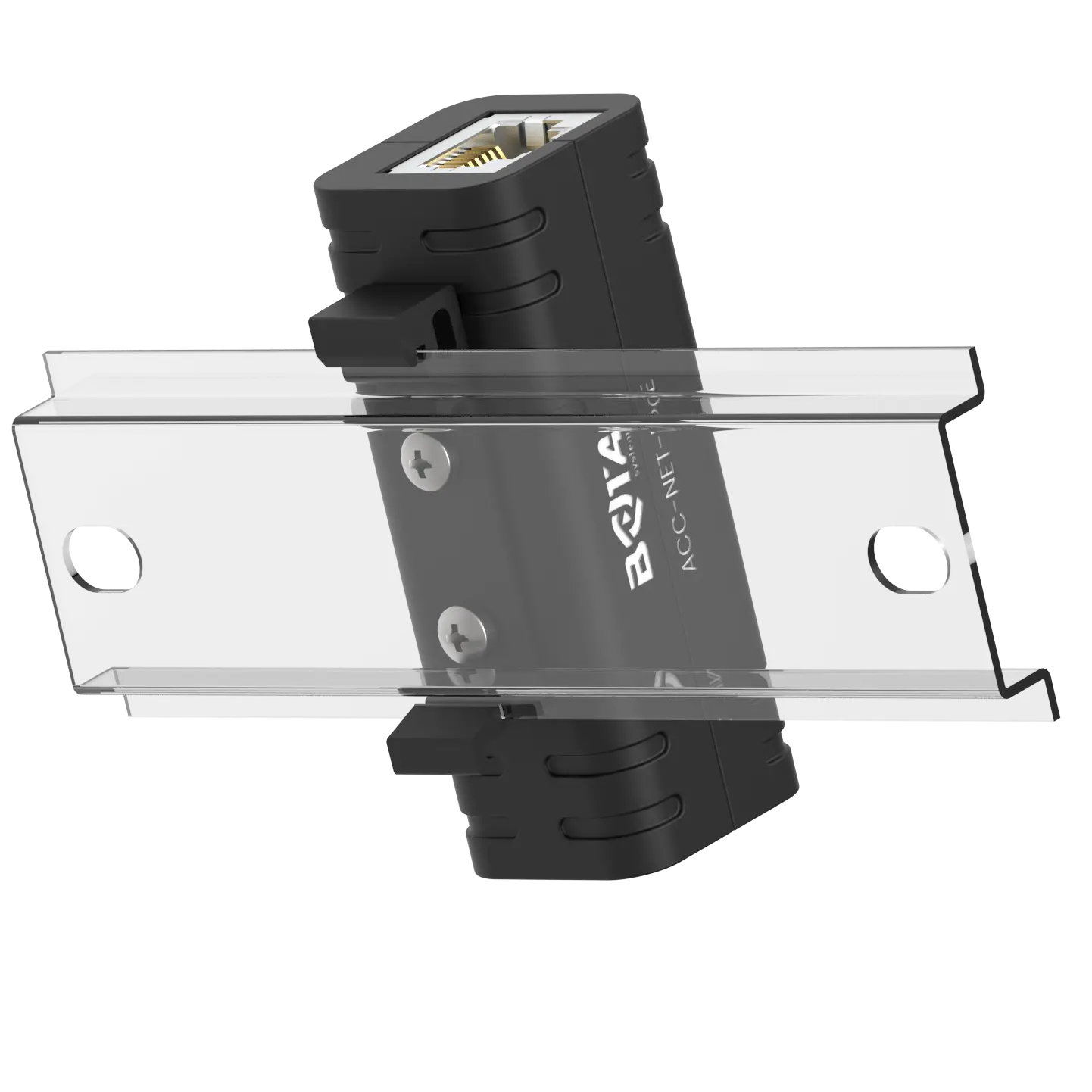

▶ A DIN rail mounting bracket for 35mm DIN rails.

A USB connection for everything

▶  USB can be used together with our configuration tool for effortless setup and commissioning.

▶ USB can be used as the main communication interface for reading measurements. For simple setups

Login or register to see the content.

Login or register to see content.

Login or register to see the content.

Redundant power supply

▶ Power the sensor over USB

▶ Power the sensor with PoE (IEEE 802.3af, 802.3at, 802.3bt)

▶ Power the sensor from an external power supply with a DC jack.

Various mounting options

▶  A screw pattern for direct mounting

▶ A DIN rail mounting bracket for 35mm DIN rails.

A USB connection for everything

▶  USB can be used together with our configuration tool for effortless setup and commissioning.

▶ USB can be used as the main communication interface for reading measurements. For simple setups

Specification





Dimension (L x W x H) 67 mm x 26 mm x23.5mm
Weight 20 grams
Ingress Protection None
Input Voltage (barrel jack) 5 - 60 Vdc, 2.5W
Power over Ethernet  802.3af, 802.3at, 802.3bt Compliance
Operating temperature -20°C - 80°C
DIN rail compatibility 35mm Top Hat, TS35
Compliance CE, Reach, RoHs
Connections USB-C,  Ethernet/EtherCAT,  2.1 barrel jack (power only)
